JIS B2220 JIS B2238 Hubbed Slip On Flange 5K 10K 20K 50A-300A

Short Description:

Name:Slip on Plate flange
Standard:JIS B2220 JIS B2238
Material:Stainless Steel
Specifications:5K 10K 20K 50A-300A
Connection mode:Welding
Production method:Forging
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,
Payment: T/T, L/C, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

Product Detail

Packaging&Shipping

Advantages

Services

FAQ

Product Tags

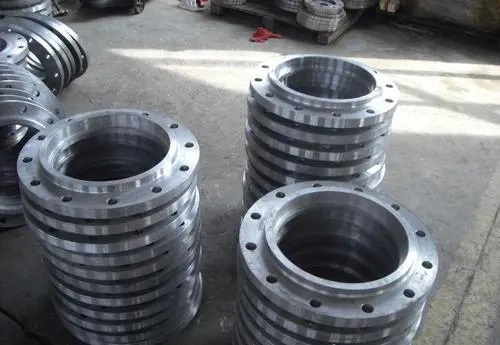

Picture Presentation

SPECIFICATION

Product Name Slip on flange
Size 1/2"-80"
Pressure 5k、10k、20k, 50A-300A
Standard JIS B2220,JIS B2238
Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Material Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc.
Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24 , A515 Gr60, A515 Gr 70 etc.
Application Petrochemical industry, aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship building;water treatment,etc.
Advantages ready stock,faster delivery time;available in all sizes,customized;high quality

Product Description

Hubbed slip on flange is the extension of steel pipe, pipe fittings, etc., into flanges, and connected with equipment or pipes through fillet welding. Slip on flange is also a kind of slip on plate flange, but it has more short neck than plate flat welded flange. Because of the short neck, it not only increases the strength of the flange, but also improves the bearing capacity of the flange. So flat welded flange with neck can be used in high pressure pipe.

Advantages: Hubbed slip on flanges  are also flat-welded flanges, because there is a short neck, which increases the strength of the flange and improves the bearing capacity of the flange. So it can be used on higher pressure pipelines.

Disadvantages: Compared with the plate-type flat welding flange, the cost is higher, and it is easier to bump during transportation due to its shape characteristics.

Product Data

SLIP ON DATA


  • Previous:
  • Next:

  • 1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

    One of our storage

    pack (1)

    Loading

    pack (2)

    Packing & Shipment

    16510247411



    1.Professional manufactory.
    2.Trial orders are acceptable.
    3.Flexible and convenient logistic service.
    4.Competitive price.
    5.100% testing,ensuring the mechanical properties
    6.Professional testing.

    1.We can guarantee the best material according to related quotation.
    2.Testing is performed on each fitting before delivery.
    3.All packages are adapt for shipment .
    4. Material chemical composition is conformed with international standard and environment standard.

    A) How can I get more details about your products?
    You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

    B) How can I get some samples?
    If you need, we will offer you samples for free, but new customers are expected to pay express charge.

    C) Do you provide customized parts?
    Yes, you can give us drawings and we will manufacture accordingly.

    D) To which country have you supplied your products?
    We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

    E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
    Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
