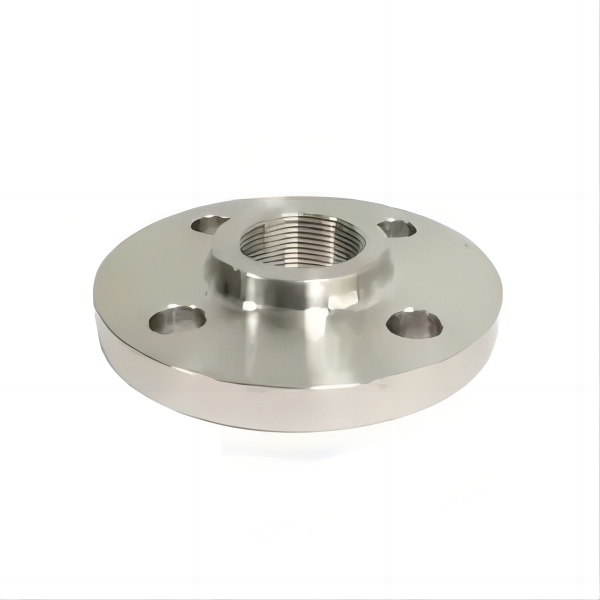

SANS 1123 High Pressure Threaded Flange NB10-NB150 600Kpa-4000Kpa

Short Description:

Name:Threaded Flange
Standard:SANS 1123
Material:Carbon Steel, Stainless Steel
Specifications:NB10-NB150 600Kpa-4000Kpa
Connection mode:Welding
Production method:Forging
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,
Payment: T/T, L/C, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

Product Detail

Packaging&Shipping

Advantages

Services

FAQ

Product Tags

Picture Presentation

Product Data

Standard Type Standard Facing Size Rating
SANS1123 THREADED  SANS1123 600/4,   SANS1123 1000/4
SANS1123 1600/4,  SANS1123 2500/4
SANS1123 4000/4
FF,RF NB10-NB150 600Kpa-4000Kpa

sans1123 600kpa

sans1123 1000kpa

sans1123 1600kpa



Product Introduction

High pressure threaded flange can be divided into cast high pressure flange, forged high pressure flange, rolled high pressure flange and welded high pressure flange according to the manufacturing method. Threaded flange refers to threaded products, which are generally used for connecting flanges of welded pipes and flanges with threads on the connecting end face.

Threaded flange refers to a kind of flange that is connected with pipeline by thread. During design, it can be treated as loose flange. The advantage is that welding is not required, and the additional torque generated by flange deformation on the cylinder or pipe is very small. The disadvantages are large flange thickness and high cost. It is applicable to the connection of high-pressure pipes.

Implementation principle
The threaded flange is a non-welded flange, which processes the inner hole of the flange into pipe thread and connects with the threaded pipe. Compared with flat welding flange or butt welding flange, threaded flange has the characteristics of convenient installation and maintenance, and can be used on some pipelines that are not allowed to be welded on site. Alloy steel flange has sufficient strength, but it is not easy to weld, or the welding performance is not good, threaded flange can also be selected. However, when the pipeline temperature changes sharply or the temperature is higher than 260 ℃ and lower than - 45 ℃, it is recommended not to use threaded flange to avoid leakage.


  • Previous:
  • Next:

  • 1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

    One of our storage

    pack (1)

    Loading

    pack (2)

    Packing & Shipment

    16510247411



    1.Professional manufactory.
    2.Trial orders are acceptable.
    3.Flexible and convenient logistic service.
    4.Competitive price.
    5.100% testing,ensuring the mechanical properties
    6.Professional testing.

    1.We can guarantee the best material according to related quotation.
    2.Testing is performed on each fitting before delivery.
    3.All packages are adapt for shipment .
    4. Material chemical composition is conformed with international standard and environment standard.

    A) How can I get more details about your products?
    You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

    B) How can I get some samples?
    If you need, we will offer you samples for free, but new customers are expected to pay express charge.

    C) Do you provide customized parts?
    Yes, you can give us drawings and we will manufacture accordingly.

    D) To which country have you supplied your products?
    We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

    E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
    Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
