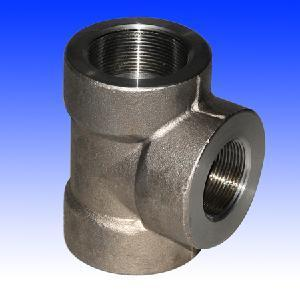

Stainless Steel High Pressure Forged Socket Welding Tee
Picture Presentation
Product Description
Material:
Stainless steel : F304,F316L,F310S,F317L,F321,F347
carbon steel:A105,A106,A53,LF2,16MN,A234 WPB
Alloy steel: F5.F9,F11,F22
Duplex Steel: F44,F51,F53,F55,F60
Special steel: 904L,N04400,N08810,N08020,N06625
Standard:GB/T 7306,12716,14383,14626
ANSI/ASME B1.20.1,B16.11
MSS SP-79,83,95,97 JIS B0203,B2316.
Threaded types:2000/3000/6000LBS
Socket weld types:3000/6000/9000LBS
Butt weld types:SCH40/SCH80/SCH160/XXS
Surface:shot blasted,rust-proof black oil,etc.
Types:threaded fitting(elbow, coupling, cross, half coupling, bushing, plug, etc) and socket welding fitting(elbow, coupling, cross, outlet, tee...)
Application:Petroleum, chemical, machinery, electric power, shipbuilding, paper making,construction,etc
Forged Fittings-threaded tees
High pressure resistance
The forged fittings include
Socket-Welding elbows, tees and crosses
Socket-Welding couplings, Caps
Threaded elbows, tees, and crosses
Threaded couplings, Caps
Plugs and Bushings
| Size | 1/8" to 4"(DN6 - DN100) |
| Pressure rating | 2000lbs 3000lbs 6000lbs |
| End type | Threaded(FNPT) Female equal or reducing |
| Steel grade | A105 A350 LF2 F304 F316L F321 |
| HS code | 730799 730793 730729 730723 |
| Production Capacity | 200 tons/ month |
| Origin | China |
| transport package | cartons & plywood cases |
| Standard: | ASME B16.11 |
| Surface | CNC machined, anti-rust oil, HDG(hot dip galv.) |
| Application | Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant; ship building; water treatment, etc. |
Threaded 90 DEG elbows tees crosses and 45 Deg elbows
Min L of thread
| Pipe Size | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 |
| 1⁄8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 1⁄4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 3⁄8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 1⁄2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 3⁄4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 11⁄4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 11⁄2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 21⁄2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
GENERAL NOTE: Dimensions are in millimeters.
NOTE:
Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests)
shall not be less than L2 (effective length of external thread) required by American National Standard for Pipe Threads (ASME B1.20.1)
Pressure testing is not required , but Class Designation Pipe Used for Rating Basis
the fittings shall be capable of withstanding a hydro- static test pressure required by the applicable piping code for seamless pipe of material equivalent to the fitting forging and of the schedule or wall thickness correlated with the fitting Class and end connection
1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case
One of our storage
Loading
Packing & Shipment
1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.
1.We can guarantee the best material according to related quotation.
2.Testing is performed on each fitting before delivery.
3.All packages are adapt for shipment .
4. Material chemical composition is conformed with international standard and environment standard.
A) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
B) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
C) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
D) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).
E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
