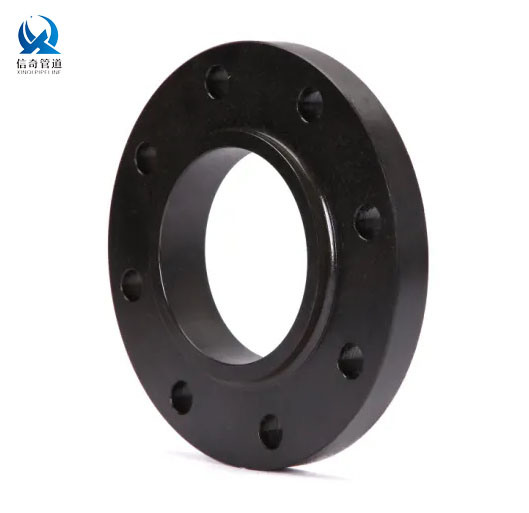

ANSI B16.5 Carbon Steel High Pressure Hubbed Slip on Flange
Picture Presentation
Brief Introduction
The full name of slip-on welding flange is slip-on welding steel pipe flange. It is a flange that extends steel pipes, pipe fittings, etc. into the flange and connects with equipment or pipes through fillet welds.
Because of the diversity of the sealing surface and the advantages of its design shape, the slip-on welding flange with neck is not easy to be deformed and has good sealing performance, and is widely used;
Full English name of slip-on steel pipe flange with neck: Slip-on; Abbreviated as SO
Function
The neck flat welding flange is the same as the plate flat welding flange, which extends the steel pipe and pipe fittings into the flange and connects with the equipment or pipeline through fillet weld.
Sealing form RF, FM, M, T, G, FF.
The diameter range of neck slip-on welding flange: DN10~DN600.
Scope of application
PN series PN2.5~PN40; Class series Class150~Class1500
Flange material: carbon steel, Luomo steel, 304, 316, 304L, 316L, 321, 347, CF8C.
Advantages and Disadvantages
Advantages:
The neck flat welding flange is also a flat welding flange, because it has a short neck, which improves the strength of the flange and the bearing strength of the flange. So it can be used on pipes with higher pressure. It not only saves space and reduces weight, but also ensures that the joint will not leak and has good sealing performance;
Disadvantages:
Compared with plate-type flat welding flange, the cost is higher. Because of its shape characteristics, it is easier to bump during transportation.
Material of carbon steel slip on flange
Carbon steel flange: ASTM A105,20 #, Q235, 16Mn, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70;
The commonly used materials are 20 #, Q235 and 16Mn.
Production process of Slip on flange
1: Pure material forging, highly precise lathe processing.
2: The whole forging process of round steel;
3: sawing, heat treatment, die forging and machining;
Data Reference
1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case
One of our storage
Loading
Packing & Shipment
1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.
1.We can guarantee the best material according to related quotation.
2.Testing is performed on each fitting before delivery.
3.All packages are adapt for shipment .
4. Material chemical composition is conformed with international standard and environment standard.
A) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
B) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
C) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
D) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).
E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
