Bellows compensator Expansion Joint DN20-DN3000

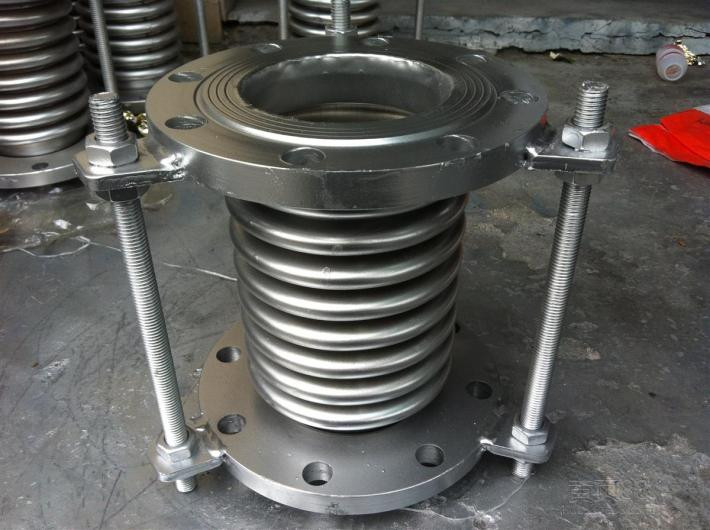

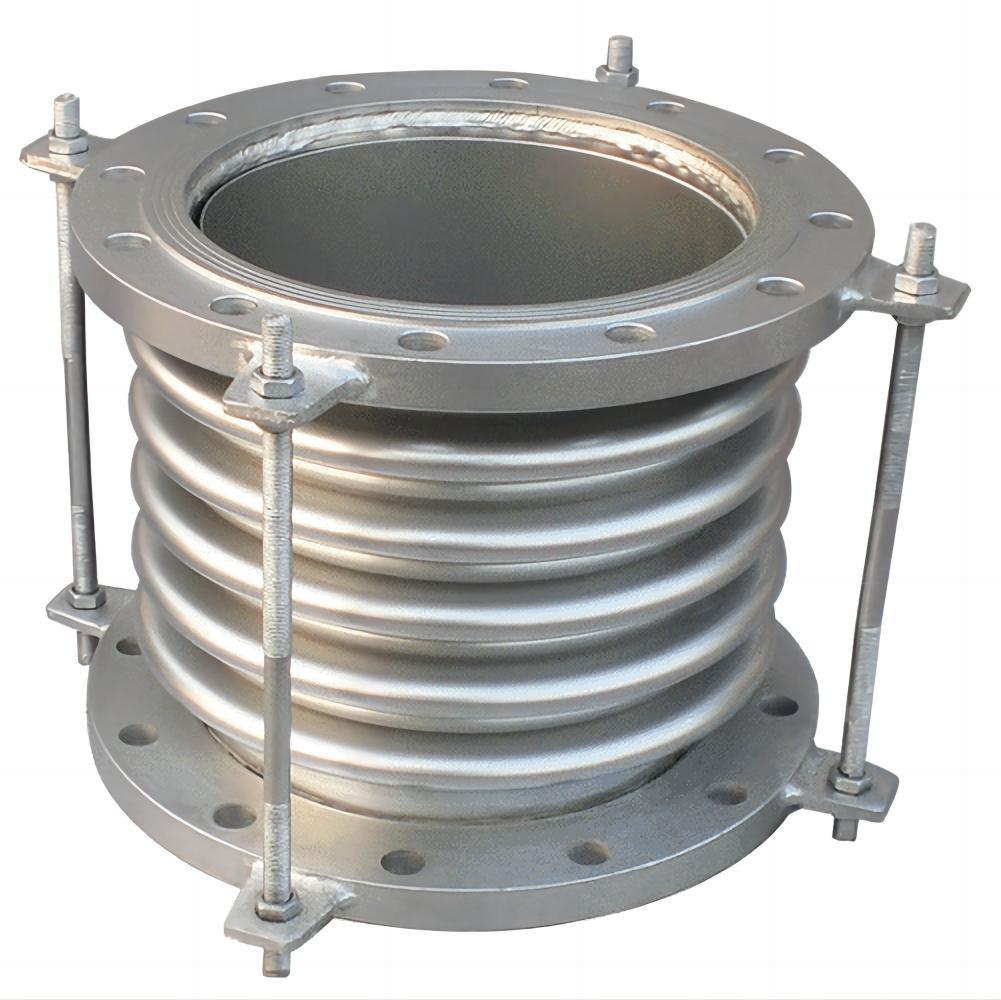

Picture Presentation
Product Information
Expansion Joint is also called the compensator, or the slip joint.By work constitute the main body of the bellows, bracket structure, and end of flanges, pipe and other accessories.as kind of compensation components.Use its work subject bellows telescopic deformation effectively, to absorb the size of the change of piping, pipe,container, etc which is produced by the reason of heat bilges cold shrink,or compensation pipeline, catheters, containers, axial, lateral and angular displacement.Can also be used for noise reduction vibration reduction.Widely used in modern industry.
In order to prevent the heating pipe from high temperature, due to thermal elongation or deformation or damage of the temperature stress caused by pipeline,need to set on the pipeline compensator,To compensate for the thermal elongation Reducing wall stress and the role of force on the valve or bracket structure.
Bellows Expansion Joints are great for accommodating axial, lateral and angular movements for a wide array of piping applications.
Stainless steel bellows, as a flexible pressure-resistant pipe fittings, are installed in the liquid transportation system to compensate for the mutual displacement of the connecting ends of pipes or machines and equipment, absorb vibration energy, and can play the role of vibration reduction and silencing. They have many characteristics, such as good flexibility, light weight, corrosion resistance, fatigue resistance, high and low temperature resistance.
Data Details
|
Bellow Size mm |
DN50 |
|
|
Expansion Joint Type |
tied |
|
|
Density (Kg/m3) |
997.0 |
|
|
Temperature ℃ |
120℃ |
|
|
Pressure Kg/cm2 |
16 |
|
|
Movement |
Axial compression |
20 |
|
Axial Elongation |
14 |
|
|
Lateral DEFLIN |
0 |
|
|
Spring Rate |
Axial (N/mm) |
114 |
|
Lateral (N/mm) |
109 |
|
|
Angular N.M/deg |
1 |
|
|
Installation Position |
Horizontal |
|
|
Dimensional Standard / Flange Rating / End Connection |
ASME 16.5 / 300# / RF Slip on |
|
|
Service |
Demineralized Water |
|
|
Face to face Length (mm） |
150 |
|
|
Material |
Bellow |
SS316L |
|
Pipe |
ASTM A312 Gr. TP316/316L |
|
|
Flange |
ASTM A182 Gr. F316L |
|

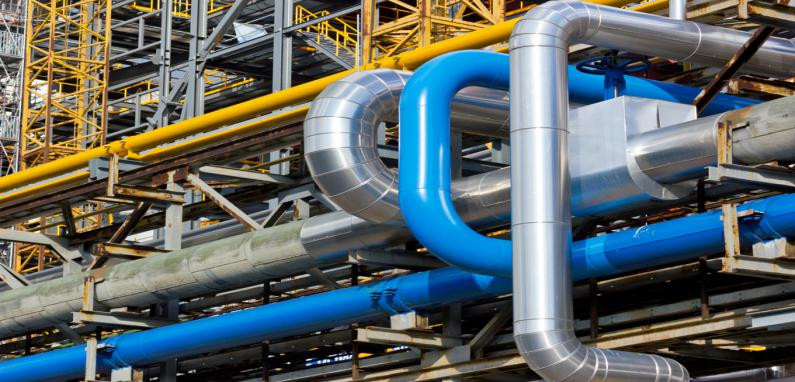

Applications
Features:
1) Nonmetal expansion joint
2) Absorbs thermal expansion and shock
3) Structure: bellows + flat welding flanges
4) Main material: bellows ; stainless steel 304; flanges; stainless steel 304 or carbon steel
5)Compensates converting mixalignment
6) Compensates for exhaust converter misalignment
7) Size, diameter and length can be produced as per clients' requirements
Industry
Technical Building Equipment
1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case
One of our storage
Loading
Packing & Shipment
1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.
1.We can guarantee the best material according to related quotation.
2.Testing is performed on each fitting before delivery.
3.All packages are adapt for shipment .
4. Material chemical composition is conformed with international standard and environment standard.
A) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
B) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
C) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
D) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).
E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
-
