We've one of the most innovative manufacturing devices, experienced and qualified engineers and workers, recognized good quality handle systems and also a friendly experienced income team pre/after-sales support for DIN2527 PN16, Bs4504 Flanges, Elbow A420 WPL6, Trust us and you will gain more. Please feel free to contact us for more information, we assure you of our best attention at all times.

Wholesale Price China Pressure Balanced Bellows - High Pressure Forged Socket Welding Tee – Xinqi Detail:

Product Description

Material:
Stainless steel : F304,F316L,F310S,F317L,F321,F347
carbon steel:A105,A106,A53,LF2,16MN,A234 WPB
Alloy steel: F5.F9,F11,F22
Duplex Steel: F44,F51,F53,F55,F60
Special steel: 904L,N04400,N08810,N08020,N06625
Standard:GB/T 7306,12716,14383,14626
ANSI/ASME B1.20.1,B16.11
MSS SP-79,83,95,97 JIS B0203,B2316.
Threaded types:2000/3000/6000LBS
Socket weld types:3000/6000/9000LBS
Butt weld types:SCH40/SCH80/SCH160/XXS
Surface:shot blasted,rust-proof black oil,etc.
Types:threaded fitting(elbow, coupling, cross, half coupling, bushing, plug, etc) and socket welding fitting(elbow, coupling, cross, outlet, tee…)
Application:Petroleum, chemical, machinery, electric power, shipbuilding, paper making,construction,etc

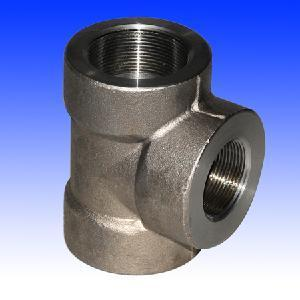

High Pressure Forged Socket Welding Tee (1)

Forged Fittings-threaded tees

High pressure resistance
The forged fittings include
Socket-Welding elbows, tees and crosses
Socket-Welding couplings, Caps
Threaded elbows, tees, and crosses
Threaded couplings, Caps
Plugs and Bushings

Size	1/8″ to 4″(DN6 – DN100)
Pressure rating	2000lbs 3000lbs 6000lbs
End type	Threaded(FNPT) Female equal or reducing
Steel grade	A105 A350 LF2 F304 F316L F321
HS code	730799 730793 730729 730723
Production Capacity	200 tons/ month
Origin	China
transport package	cartons & plywood cases
Standard:	ASME B16.11
Surface	CNC machined, anti-rust oil, HDG(hot dip galv.)
Application	Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant; ship building; water treatment, etc.

Threaded 90 DEG elbows tees crosses and 45 Deg elbows

guandao

Min L of thread

Pipe Size	2000	3000	6000	2000	3000	6000	2000	3000	6000	2000	3000	6000	B	L₂
1⁄8	21	21	25	17	17	19	22	22	25	3.18	3.18	6.35	6.4	6.7
1⁄4	21	25	28	17	19	22	22	25	33	3.18	3.30	6.60	8.1	10.2
3⁄8	25	28	33	19	22	25	25	33	38	3.18	3.51	6.98	9.1	10.4
1⁄2	28	33	38	22	25	28	33	38	46	3.18	4.09	8.15	10.9	13.6
3⁄4	33	38	44	25	28	33	38	46	56	3.18	4.32	8.53	12.7	13.9
1	38	44	51	28	33	35	46	56	62	3.68	4.98	9.93	14.7	17.3
1¹⁄₄	44	51	60	33	35	43	56	62	75	3.89	5.28	10.59	17.0	18.0
1¹⁄₂	51	60	64	35	43	44	62	75	84	4.01	5.56	11.07	17.8	18.4
2	60	64	83	43	44	52	75	84	102	4.27	7.14	12.09	19.0	19.2
2¹⁄₂	76	83	95	52	52	64	92	102	121	5.61	7.65	15.29	23.6	28.9
3	86	95	106	64	64	79	109	121	146	5.99	8.84	16.64	25.9	30.5
4	106	114	114	79	79	79	146	152	152	6.55	11.18	18.67	27.7	33.0

GENERAL NOTE: Dimensions are in millimeters.
NOTE:
Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests)
shall not be less than L2 (effective length of external thread) required by American National Standard for Pipe Threads (ASME B1.20.1)
Pressure testing is not required , but Class Designation Pipe Used for Rating Basis
the fittings shall be capable of withstanding a hydro- static test pressure required by the applicable piping code for seamless pipe of material equivalent to the fitting forging and of the schedule or wall thickness correlated with the fitting Class and end connection

Product detail pictures:

Related Product Guide:

As a result of ours specialty and service consciousness, our company has won a good reputation among customers all over the world for Wholesale Price China Pressure Balanced Bellows - High Pressure Forged Socket Welding Tee – Xinqi , The product will supply to all over the world, such as: Tunisia, Armenia, Istanbul, Many kinds of different solutions are available for you to choose, you can do one-stop shopping here. And customized orders are acceptable. Real business is to get win-win situation, if possible, we would like to deliver more support for customers. Welcome all nice buyers communicate details of solutions with us!!

1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

One of our storage

pack (1)

Loading

pack (2)

Packing & Shipment

1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.

1.We can guarantee the best material according to related quotation.
2.Testing is performed on each fitting before delivery.
3.All packages are adapt for shipment .
4. Material chemical composition is conformed with international standard and environment standard.

A) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

B) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.

C) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.

D) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
